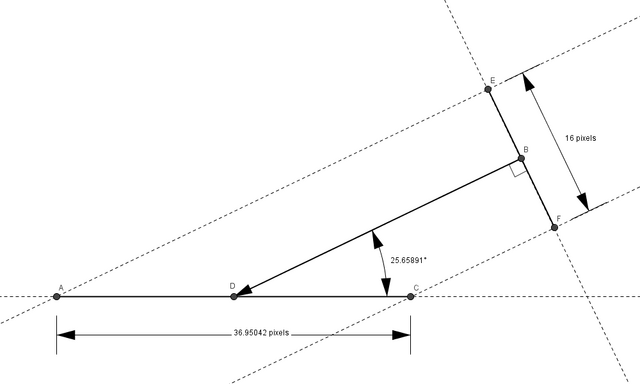

Camera angles and sprite measurements for Fallout and Fallout 2. The camera is located at point B and is pointing toward the center of the scene at point D. If the width of a hexagonal tile is 32 pixels from side to side, then the length of a hexagonal tile from corner to corner is 32/cos(30°) or 36.95042 pixels. Projected onto the player's screen, the length of a hexagonal tile from bottom corner to top corner is 16 pixels.
