Full resolution(1,024 × 1,024 pixels, file size: 32 KB, MIME type: image/png)

Summary Edit

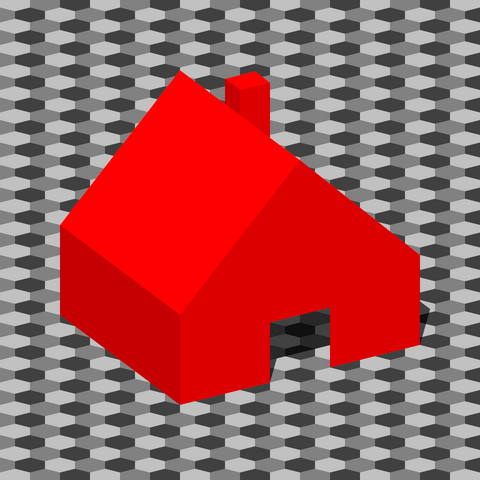

Image shows how I determined the camera angle used in Fallout.

Licensing Edit

CopyrightThis file has been released into the public domain by the copyright holder, its copyright has expired, or it is ineligible for copyright. This applies worldwide.

Source code Edit

// POV-Ray scene for achieving the Fallout and Fallout 2 camera angles.
// Render at 512x512px.

#version 3.7
#include "stdinc.inc"
#include "transforms.inc"
#include "screen_new.inc"		// requires the updated version available here: http://news.povray.org/povray.binaries.scene-files/thread/%3C4afccd8a%241%40news.povray.org%3E/

global_settings
{
	assumed_gamma	1
}

#local cornerangle	= asind(cosd(30)/2);
#local opposite		= 16;
#local hypotenuse	= 1/cosd(30);
#local adjacent		= cosd(cornerangle) * hypotenuse;
#local verticalstep	= sind(cornerangle)/adjacent;

#local tile_width	= 1;
#local tile_length	= hypotenuse;
#local tile_height	= hypotenuse/2/cosd(cornerangle) * sind(cornerangle);

#debug concat("\nt_h = ", str(tile_height, 0, -1), "\n\n")

#local cam_dist	= 1024;
#local cam_area	= 16;
#local cam_loca	= -z * cam_dist;
#local cam_dirc	= +z;
#local cam_rgvc	= +x * cam_area;
#local cam_upvc	= +y * cam_area;
#local cam_tran = transform
{
	rotate		+x * cornerangle
	rotate		+y * 30
	translate	+y * verticalstep * 8
}
#declare Camera_Orthographic = true;
Set_Camera_Transform(cam_tran)
Set_Camera_Alt(cam_loca, cam_dirc, cam_rgvc, cam_upvc)

#local sun_angle_x = 50;	// guesstimate
#local sun_angle_y = 37;	// guesstimate
light_source
{
	-z * 1024
	color rgb	2
	rotate		+x * sun_angle_x
	rotate		+y * sun_angle_y
	parallel
	point_at	<0,0,0>
}

/*
// checker plane
plane
{
	y, 0
	texture
	{
		pigment
		{
			checker
			color srgb 3/4
			color srgb 1/4
		}
	}
}
*/
// hex plane
plane
{
	y, 0
	texture
	{
		pigment
		{
			hexagon
			color srgb 3/4
			color srgb 2/4
			color srgb 1/4
		}
	}
	scale tile_length/2
}

merge
{

	// house
	intersection
	{
		plane
		{
			+x, 0
			rotate +z * 45
			translate +x * tile_length*4
			translate +y * 12 * tile_height
		}
		plane
		{
			-x, 0
			rotate -z * 45
			translate -x * tile_length*4
			translate +y * 12 * tile_height
		}
		box
		{
			<-tile_length*4, 0, -tile_width*4>, <+tile_length*4, tile_height * 32, +tile_width*4>
		}
	}
	// chimney
	box
	{
		<0,0,0,>, <+tile_length, tile_height * 32, +tile_width,>
	}
	// doorway and floor
	clipped_by
	{
		union
		{
			box {<-tile_length, -1, -tile_width*4-1,>, <+tile_length, +8 * tile_height, +tile_width*4+1,> inverse}
			plane {+y, 0}
		}
	}
	pigment {color srgbt <1,0,0,0>}
}

#local sphere_siz = 1/8;

/*
#local sphere_3d_1 = <+tile_length*4,0,+tile_width*22,>;
sphere {sphere_3d_1, sphere_siz pigment{color srgb y}}
#local sphere_2d_1 = Get_Screen_XY(sphere_3d_1);
#debug concat("\np1 = (", vstr(2, sphere_2d_1, ",", 0, -1), ")\n\n")

#local sphere_3d_2 = <+tile_length*4,0,-tile_width*6,>;
sphere {sphere_3d_2, sphere_siz pigment{color srgb y}}
#local sphere_2d_2 = Get_Screen_XY(sphere_3d_2);
#debug concat("\np2 = (", vstr(2, sphere_2d_2, ",", 0, -1), ")\n\n")

#local shadow_length = cosd(sun_angle_x)/sind(sun_angle_x)*(+12 * tile_height);
#local corner_pos = <+tile_length*4,0,-tile_width*4,>;

#local sphere_3d_5 = <0,0,0,>;
sphere {sphere_3d_5 + corner_pos, sphere_siz pigment{color srgb y}}
#local sphere_2d_5 = Get_Screen_XY(sphere_3d_5) - <512,512>;
#debug concat("\np5 = (", vstr(2, sphere_2d_5, ",", 0, -1), ")\n\n")

#local sphere_3d_6 = <0,+12 * tile_height,0,>;
sphere {sphere_3d_6 + corner_pos, sphere_siz pigment{color srgb y}}
#local sphere_2d_6 = Get_Screen_XY(sphere_3d_6) - <512,512>;
#debug concat("\np6 = (", vstr(2, sphere_2d_6, ",", 0, -1), ")\n\n")

#local sphere_3d_7 = vrotate(<0,0,shadow_length,>, <0,sun_angle_y,0>);
sphere {sphere_3d_7 + corner_pos, sphere_siz pigment{color srgb y}}
#local sphere_2d_7 = Get_Screen_XY(sphere_3d_7) - <512,512>;
#debug concat("\np7 = (", vstr(2, sphere_2d_7, ",", 0, -1), ")\n\n")

cylinder
{
	sphere_3d_5 + corner_pos, sphere_3d_6 + corner_pos, sphere_siz/2
	pigment {color srgb z}
}
cylinder
{
	sphere_3d_5 + corner_pos, sphere_3d_7 + corner_pos, sphere_siz/2
	pigment {color srgb z}
}
*/
